8-bit RISC microcontroller featuring a 20MHz clock speed and 0.75KB OTP memory. This integrated circuit offers 12 programmable I/O pins, an 8-bit address and data bus, and a single timer/counter. Operating from a 4.5V to 5.5V supply, it includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. Packaged in an 18-pin SOIC (SO-18) with a 20µs access time, this lead-free and RoHS compliant component is suitable for operation between 0°C and 70°C.
Frequency20MHz
PackageSOIC
Current2mA
Quick Jump:
Technical Specifications
Microchip PIC16C54C-20/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.39mm
Lead Free
Lead Free
Length
11.73mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 16C
Supply Current
2mA
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C54C-20/SO Datasheet
Download the complete datasheet for Microchip PIC16C54C-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

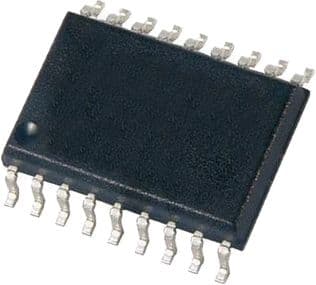

Product Images
