8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB EPROM/OTP memory. This surface-mount device operates from 3V to 5.5V, with 128 bytes of RAM and 13 programmable I/O pins. It includes a watchdog timer and POR peripheral, with an external oscillator type. Packaged in a 20-pin SSOP, it offers an access time of 20µs and a maximum power dissipation of 1W, suitable for operation between -40°C and 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C558-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM, , OTP
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
67
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C558-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C558-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

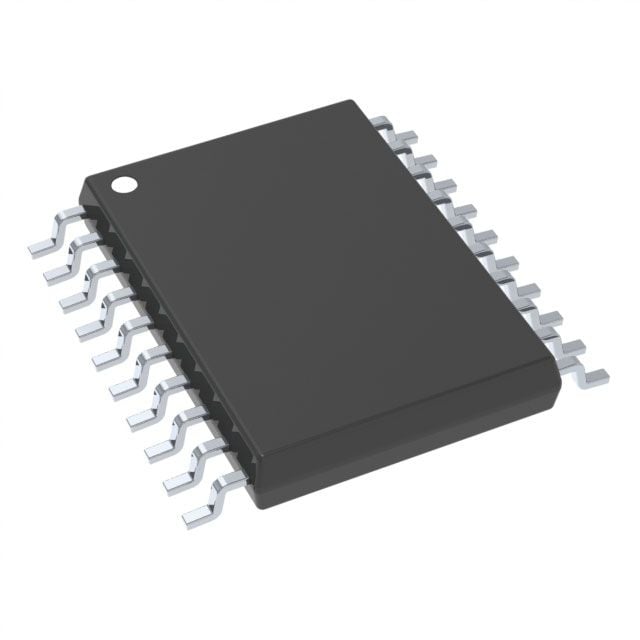

Product Images
