8-bit RISC microcontroller featuring a 4MHz clock speed and 512B EPROM/OTP memory. This surface mount device offers 20 programmable I/O pins, one timer/counter, and RS-232 interface capability. Operating within a 4.5V to 5.5V supply range, it includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. Packaged in a 28-pin SOIC (0.300 inch) with a maximum power dissipation of 800mW and an operating temperature range of 0°C to 70°C.
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C55A-04/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
2.39mm
Interface
RS-232
Lead Free
Lead Free
Length
18.08mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
512B
Memory Type
EPROM, , OTP
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
24B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C55A-04/SO Datasheet
Download the complete datasheet for Microchip PIC16C55A-04/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

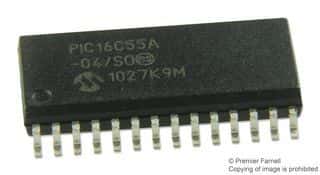

Product Images
