8-bit RISC microcontroller operating at 20MHz, featuring an OTP EPROM memory type with 512B capacity and 24B RAM. This surface mount device utilizes an SSOP package and supports an RS-232 interface. It includes a watchdog timer, power-on reset (POR), and one timer/counter, with 20 programmable I/O pins. Operating voltage ranges from 4.5V to 5.5V, with a maximum power dissipation of 800mW and a maximum operating temperature of 70°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C55A-20/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
70°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
512B
Memory Type
EPROM, , OTP
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Programmable I/O
20
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
24B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C55A-20/SS Datasheet
Download the complete datasheet for Microchip PIC16C55A-20/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

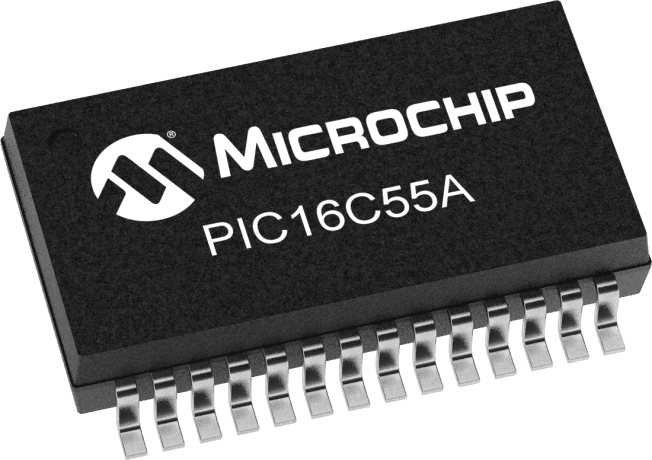

Product Images
