8-bit RISC microcontroller featuring a 20MHz core frequency and 20 programmable I/O pins. This surface-mount device offers 512B of OTP EPROM memory and 24B of RAM, with an operating supply voltage of 5V (4.5V to 5.5V range). Integrated peripherals include Power-on Reset (POR) and a Watchdog Timer (WDT), with an external oscillator type. The SSOP package is designed for high-volume tape and reel packaging.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C55AT-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
512B
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Programmable I/O
20
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
24B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C55AT-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C55AT-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

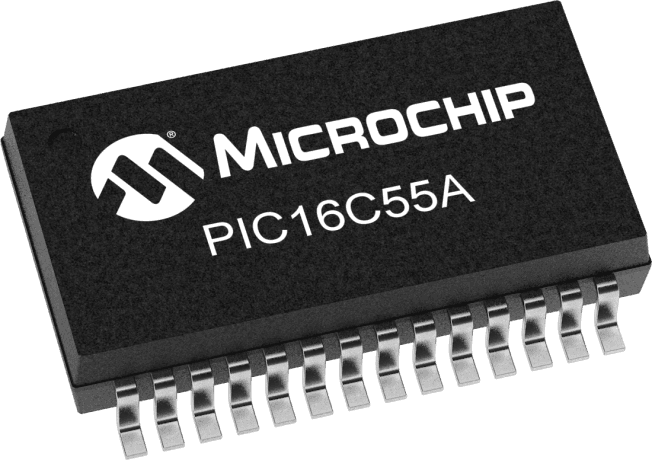

Product Images
