Microchip
PIC16C56A/JW
8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERAMIC, MO-036, DIP-18
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC16C56A/JW technical specifications.
General
Access Time
20us
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Contains Lead
Max Frequency
40MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1KB
Memory Type
EPROM,
Min Supply Voltage
2.5V
Number of Programmable I/O
12
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C56A/JW Datasheet
Download the complete datasheet for Microchip PIC16C56A/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

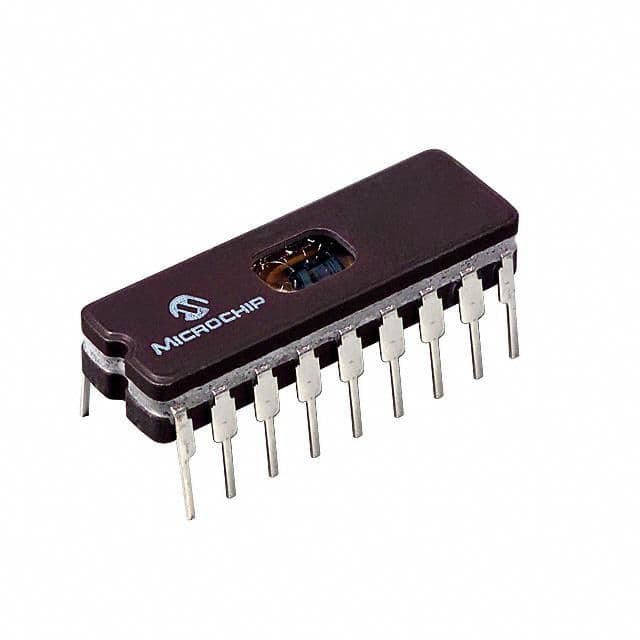

Product Images
