8-bit RISC microcontroller featuring a 20MHz core frequency and 40MHz max frequency. This OTP microcontroller offers 3KB of memory, 72B of RAM, and 20 programmable I/O pins. It includes a watchdog timer and POR peripheral, with an RS-232 interface. Operates from 4.5V to 5.5V supply voltage with a max power dissipation of 800mW. Packaged in a 28-pin PDIP.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C57-HS/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Reach SVHC Compliant
No
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC16C57-HS/P Datasheet
Download the complete datasheet for Microchip PIC16C57-HS/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

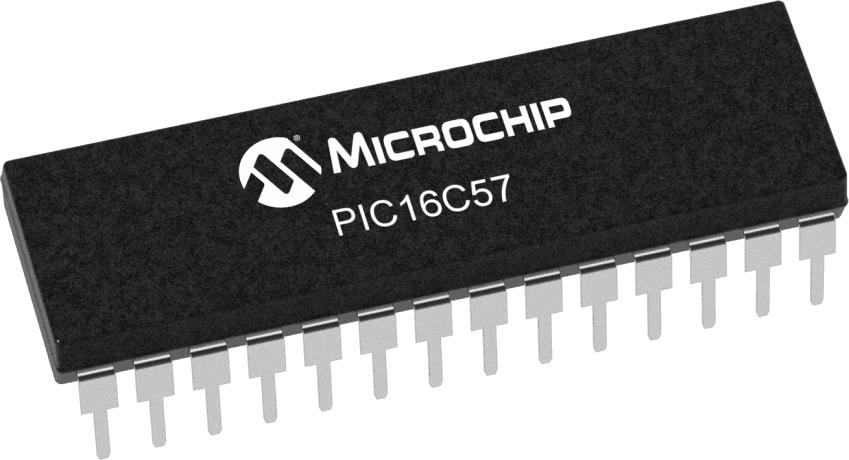

Product Images
