8-bit RISC microcontroller featuring 3KB OTP memory and 72 bytes of RAM. Operates at up to 4MHz with an 8-bit data bus and 20 programmable I/O pins. Includes one timer/counter, POR, and WDT peripherals. Available in a 28-pin PDIP package, operating from 3V to 6.25V with an access time of 4µs. RoHS compliant and lead-free.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C57-XT/P technical specifications.
General
| Access Time | 4us |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Height | 4.06mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 37.21mm |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 6.25V |
| Memory Size | 3KB |
| Memory Type | OTP |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Number of Bits | 8 |
| Number of I/Os | 20 |
| Number of Programmable I/O | 20 |
| Number of Timers/Counters | 1 |
| Number of USB Channels | 0 |
| Oscillator Type | External |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 72B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16C |
| Watchdog Timer | Yes |
| Width | 14.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C57-XT/P Datasheet
Download the complete datasheet for Microchip PIC16C57-XT/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

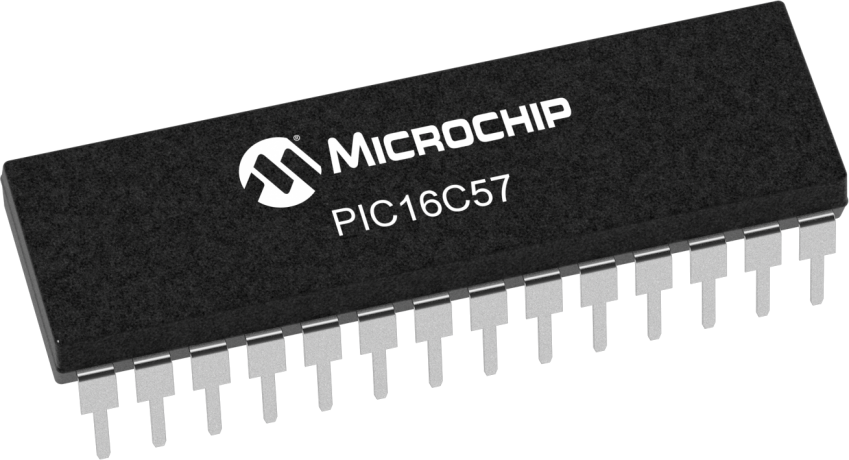

Product Images
