8-bit RISC microcontroller featuring 3KB OTP memory and 72B RAM. Operates at up to 4MHz with an 8-bit data bus and 20 programmable I/Os. Includes a watchdog timer and POR peripheral. Packaged in a 28-pin PDIP with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C57-XTI/SP technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Memory Size
3KB
Memory Type
OTP
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
6.25V
Min Supply Voltage
3V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C57-XTI/SP Datasheet
Download the complete datasheet for Microchip PIC16C57-XTI/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

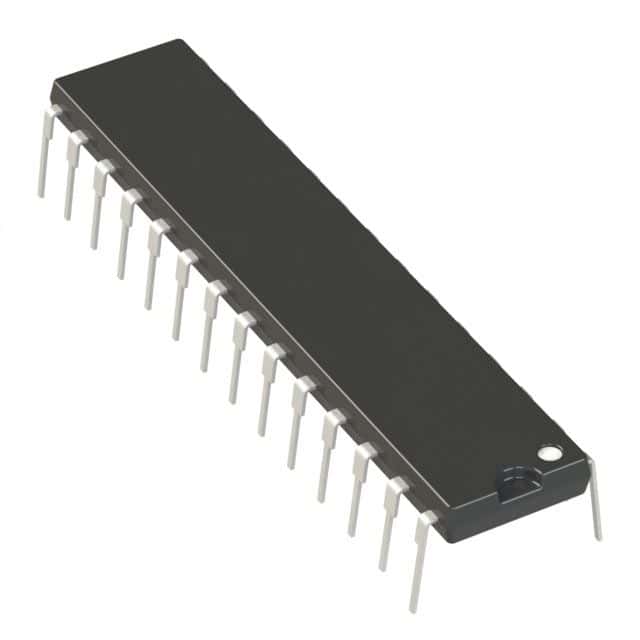

Product Images
