8-bit RISC microcontroller featuring a 20MHz clock speed and 3KB OTP memory. This integrated circuit offers an 8-bit address and data bus, 20 programmable I/Os, and a single timer/counter. Operating from 4.5V to 5.5V, it includes POR and WDT peripherals and supports RS-232 interface. Packaged in a 28-pin PDIP, this lead-free component is RoHS compliant.
Frequency20MHz
PackagePDIP
Current2mA
Quick Jump:
Technical Specifications
Microchip PIC16C57C-20/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
4.06mm
Interface
RS-232
Lead Free
Lead Free
Length
37.21mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of Bits
8
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Number of USB Channels
0
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Supply Current
2mA
Watchdog Timer
Yes
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C57C-20/P Datasheet
Download the complete datasheet for Microchip PIC16C57C-20/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

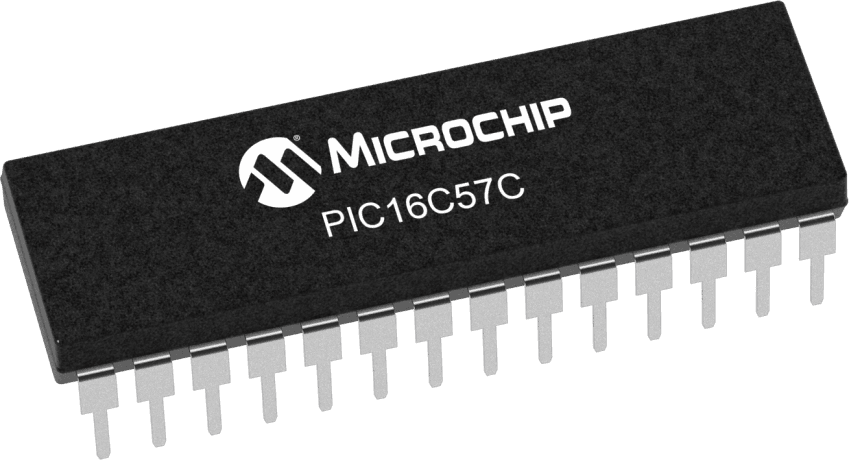

Product Images
