8-bit RISC microcontroller featuring 3KB OTP memory and 72B RAM. Operates at up to 20MHz with an 8-bit data bus width. Includes 20 programmable I/O pins, one timer/counter, and POR/WDT peripherals. Packaged in a 28-pin PDIP, this lead-free component supports an operating supply voltage of 5V, with a range of 4.5V to 5.5V.
Frequency40MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C57C-20I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3KB
Memory Type
OTP
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Operating Supply Voltage
5V
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C57C-20I/P Datasheet
Download the complete datasheet for Microchip PIC16C57C-20I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

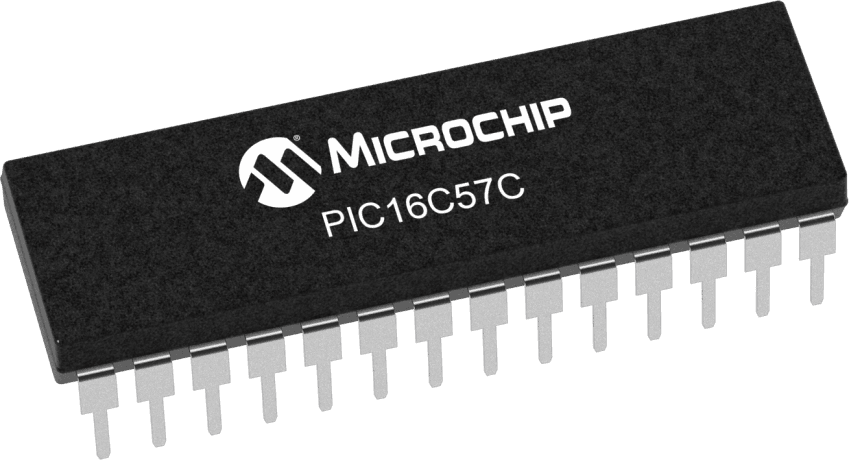

Product Images
