8-bit RISC microcontroller featuring 20MHz operation and 3KB OTP memory. This integrated circuit offers 20 programmable I/Os, an 8-bit data bus, and a single timer/counter. Operating from a 4.5V to 5.5V supply, it includes RS-232 interface capability and a watchdog timer. Packaged in a 28-pin SOIC (SO-28) with a temperature range of -40°C to 85°C, this lead-free component is RoHS compliant.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C57C-20I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Operating Supply Voltage
5V
Package Quantity
27
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C57C-20I/SO Datasheet
Download the complete datasheet for Microchip PIC16C57C-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

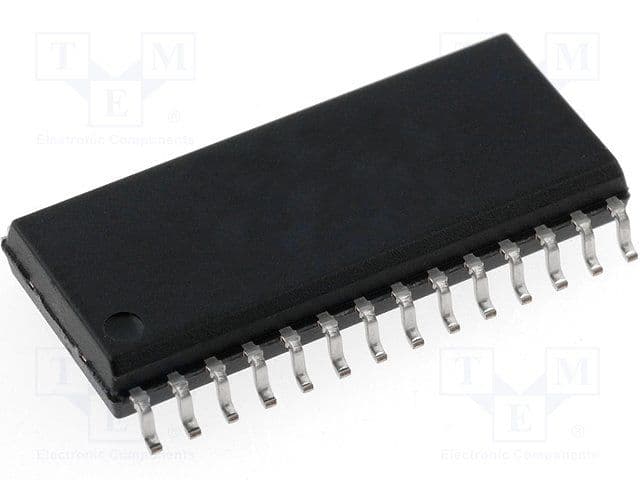

Product Images
