8-bit RISC microcontroller featuring a 20MHz clock speed and 3KB OTP memory. This integrated circuit offers 20 programmable I/Os, one timer/counter, and includes POR and WDT peripherals. Operating from a 4.5V to 5.5V supply, it supports RS-232 interface and has an access time of 20µs. Packaged in a 28-pin SSOP, this lead-free and RoHS compliant component operates within a -40°C to 85°C temperature range.
Frequency20MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16C57C-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C57C-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C57C-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

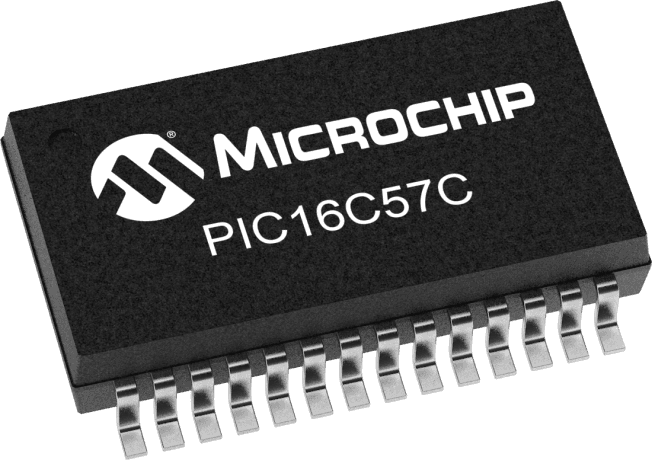

Product Images
