The PIC16C621A-20I/SS is an 8-bit PIC microcontroller with a core architecture of PIC and a data bus width of 8 bits. It operates at a maximum frequency of 40MHz and has a maximum power dissipation of 1W. The device is packaged in a SSOP-20 package and is surface mountable. It has a memory size of 1.75KB and a memory type of EPROM. The microcontroller has 13 programmable I/Os and 1 timer/counter. It is RoHS compliant and has a watchdog timer. The operating temperature range is from -40°C to 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C621A-20I/SS technical specifications.
General
| Access Time | 20us |
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 1.75KB |
| Memory Type | EPROM, |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 1 |
| Package Quantity | 67 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 96B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C621A-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C621A-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

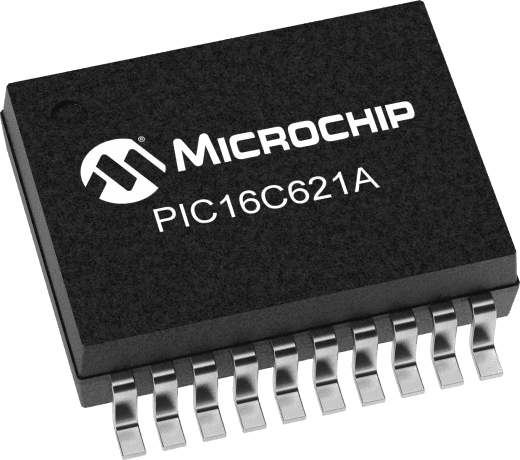

Product Images
