Microchip
PIC16C621AT-04I/SO
8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SO-18
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C621AT-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
EPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
1
Package Quantity
1100
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
96B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C621AT-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16C621AT-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

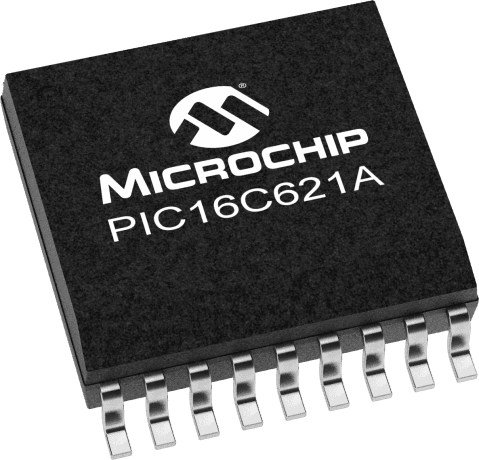

Product Images
