8-bit RISC microcontroller featuring a 4MHz clock speed and 3.5KB EPROM/OTP memory. This surface mount device offers 128B RAM, 28 programmable I/O pins, and 3 timers/counters. Interfaces include I2C, SPI, and SSP, with peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Operating voltage ranges from 4V to 5.5V, with a maximum operating temperature of 85°C.
Frequency4MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C62B-04I/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
28
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C62B-04I/SS Datasheet
Download the complete datasheet for Microchip PIC16C62B-04I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

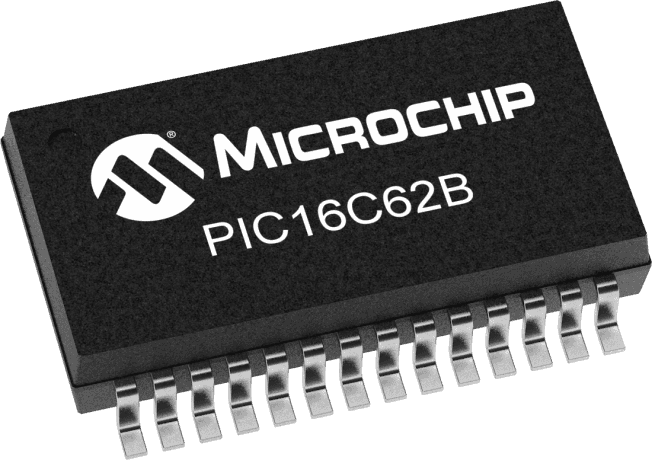

Product Images
