8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB of EPROM memory. This surface mount device offers 128B of RAM, 28 programmable I/O pins, and includes peripherals such as PWM and I2C. Operating from a 4V to 5.5V supply, it supports I2C, SPI, and SSP interfaces and boasts a watchdog timer. Designed for a wide temperature range of -40°C to 85°C, this RoHS compliant component is packaged in an SSOP.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C62B-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
28
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
47
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C62B-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C62B-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

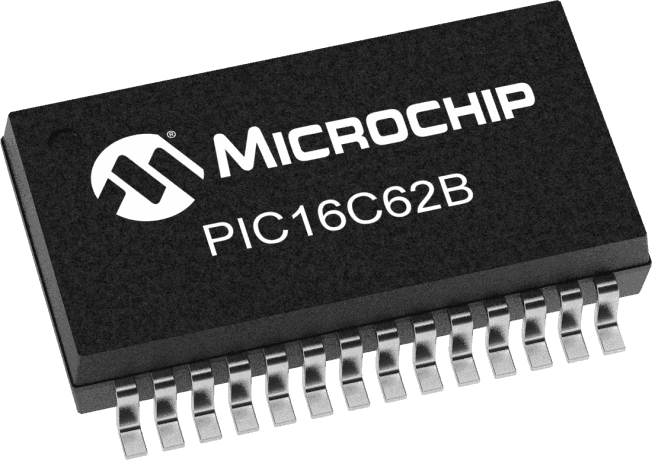

Product Images
