8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 4MHz. This surface mount device offers 7KB of OTP/EPROM memory and 192B of RAM, with 22 programmable I/O pins. Integrated peripherals include I2C, SPI, USART, UART, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. It supports a supply voltage range of 3.65V to 5.5V and operates within a temperature range of 0°C to 70°C.
Frequency4MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C63A-04/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Supply Voltage
3.65V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C63A-04/SS Datasheet
Download the complete datasheet for Microchip PIC16C63A-04/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

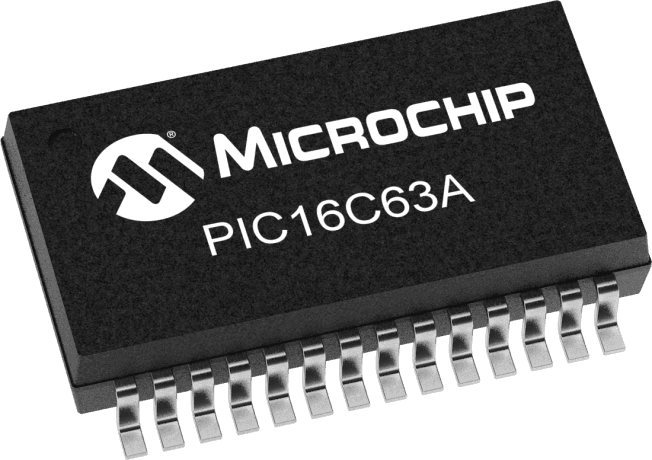

Product Images
