8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 4MHz with a maximum frequency of 20MHz. This surface mount device offers 7KB of EPROM memory and 192B of RAM, supporting I2C, SPI, and USART/UART interfaces. It includes 22 programmable I/O pins, three timers/counters, PWM, and a watchdog timer, with an operating supply voltage range of 3.65V to 5.5V. Packaged in a lead-free SOIC (SO-28) package, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C63A-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
3.65V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
27
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C63A-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16C63A-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

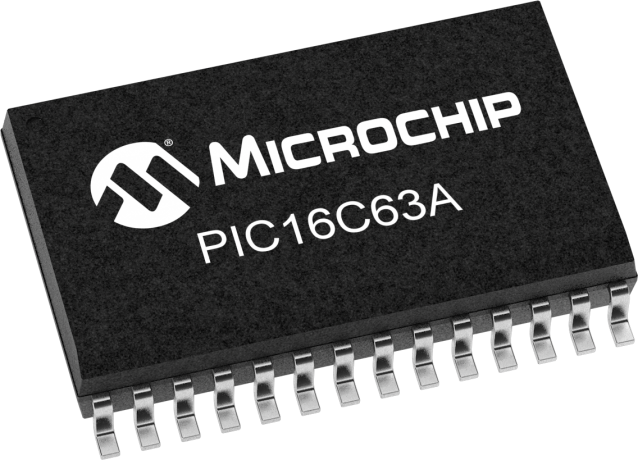

Product Images
