8-bit RISC microcontroller featuring a 20MHz clock speed and 7KB EPROM memory. This surface mount device offers 22 programmable I/O pins, 3 timers/counters, and integrated peripherals including I2C, SPI, USART, UART, and PWM. Operating from 3.65V to 5.5V, it includes a watchdog timer and 192 bytes of RAM, with a maximum operating temperature of 70°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C63A-20/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM,
Min Supply Voltage
3.65V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
47
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C63A-20/SS Datasheet
Download the complete datasheet for Microchip PIC16C63A-20/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

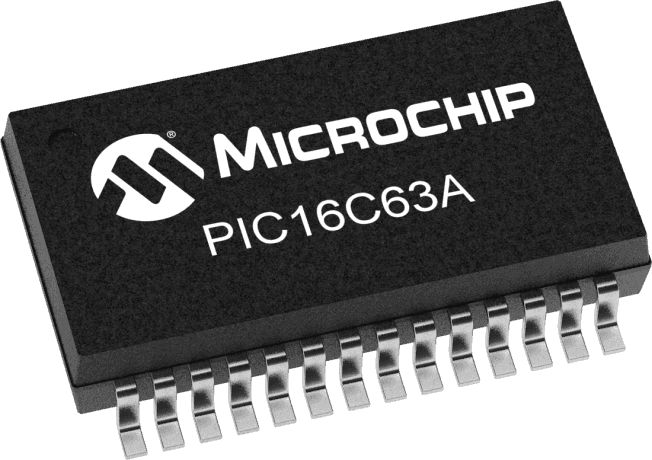

Product Images
