8-bit RISC microcontroller featuring a 4MHz clock speed and 3.5KB OTP memory. This integrated circuit offers 33 programmable I/O pins, supporting I2C, SPI, SSP, and USART interfaces. Includes a 128B RAM, one PWM channel, three timers/counters, and peripherals like Brown-out Detect, POR, and WDT. Operates from 4V to 6V supply voltage with an access time of 4µs, packaged in a 40-pin PDIP.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C64A-04/P technical specifications.
General
| Access Time | 4us |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Height | 4.064mm |
| Interface | I2C, SPI, SSP, USART |
| Lead Free | Lead Free |
| Length | 52.2mm |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 6V |
| Memory Size | 3.5KB |
| Memory Type | OTP |
| Min Supply Voltage | 4V |
| Number of Bits | 8 |
| Number of I/Os | 33 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16C |
| Watchdog Timer | Yes |
| Width | 13.97mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C64A-04/P Datasheet
Download the complete datasheet for Microchip PIC16C64A-04/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

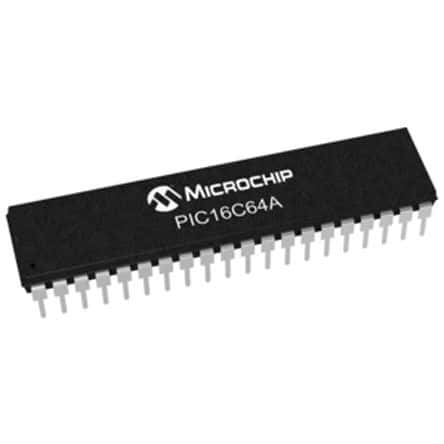

Product Images
