8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB OTP memory. This integrated circuit offers 33 programmable I/O pins, 3 timers/counters, and supports I2C, SPI, and USART interfaces. Operating from a 4V to 6V supply, it includes peripherals like Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a PQFP44, this lead-free and RoHS compliant component has an operating temperature range of 0°C to 70°C.
Frequency20MHz
PackageQFP
Quick Jump:
Technical Specifications
Microchip PIC16C64A-20/PQ technical specifications.
General
Access Time
20us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Min Supply Voltage
4V
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
96
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C64A-20/PQ Datasheet
Download the complete datasheet for Microchip PIC16C64A-20/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

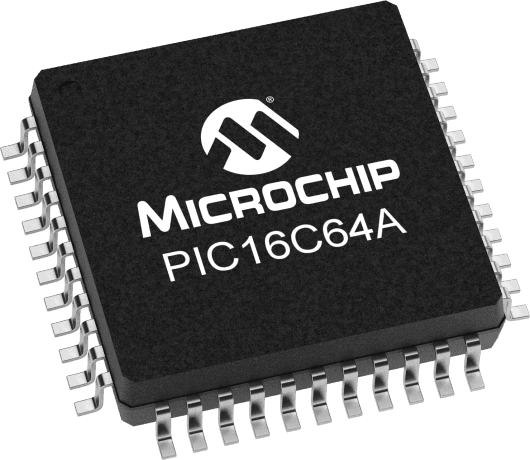

Product Images
