8-bit RISC microcontroller featuring 7KB EPROM/OTP memory and 192B RAM. Operates at up to 20MHz with an 8-bit data bus and supports I2C, SPI, and USART/UART interfaces. Includes 33 programmable I/O pins, 3 timers/counters, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Operates from 4V to 6V supply voltage, with an extended temperature range of -40°C to 125°C. Packaged in a 40-pin PDIP.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C65A-04E/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Number of Programmable I/O
33
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C65A-04E/P Datasheet
Download the complete datasheet for Microchip PIC16C65A-04E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

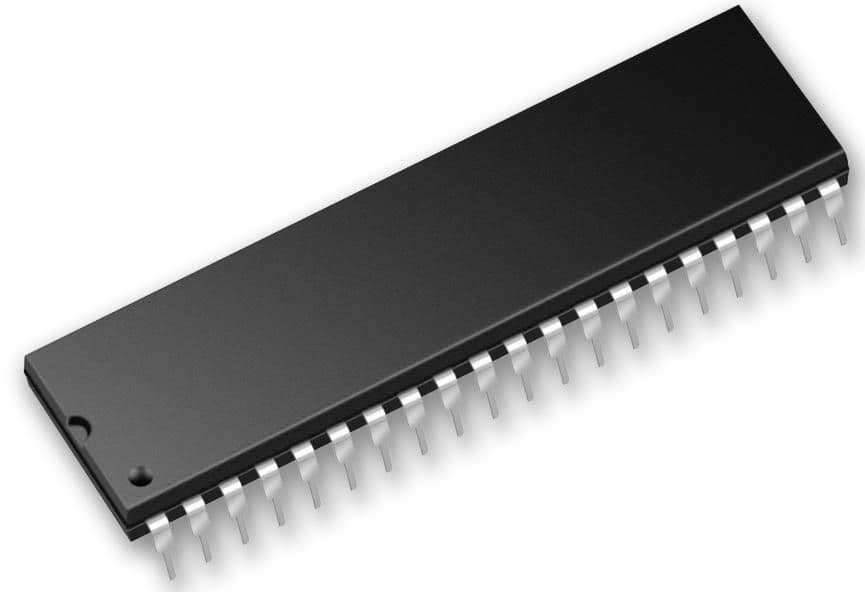

Product Images
