8-bit RISC microcontroller featuring 14KB OTP memory and 368B RAM. Operates at up to 4MHz with an 8-bit data bus width. Supports I2C, SPI, and USART/UART interfaces, with 33 programmable I/Os and 3 timers/counters. Offers a watchdog timer and operates within a 4V to 5.5V supply voltage range. Packaged in a PQFP44 with a maximum operating temperature of 70°C.
Frequency4MHz
Quick Jump:
Technical Specifications
Microchip PIC16C67-04/PQ technical specifications.
General
| Access Time | 4us |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | OTP |
| Min Supply Voltage | 4V |
| Number of I/Os | 33 |
| Number of Programmable I/O | 33 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 368B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C67-04/PQ Datasheet
Download the complete datasheet for Microchip PIC16C67-04/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

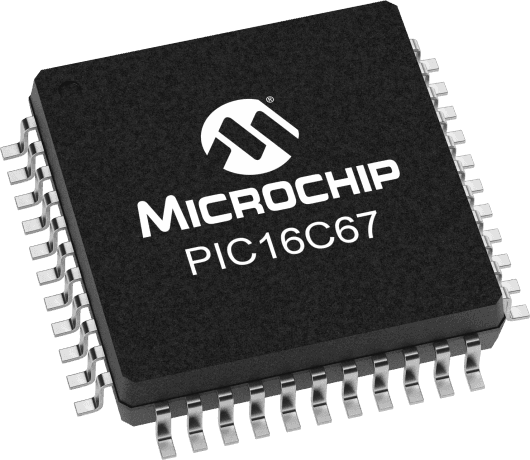

Product Images
