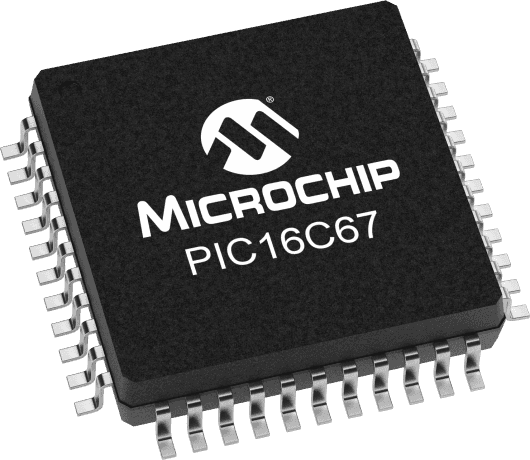

PIC16C67-20/PQ

8-Bit 20MHz RISC MCU, PIC Core, 14KB OTP, QFP

8-bit RISC microcontroller featuring a 20MHz clock speed and 14KB OTP memory. This QFP-packaged IC offers 33 programmable I/O pins, supporting I2C, SPI, and USART interfaces. It operates from a 4V to 6V supply, with a typical 5V, and includes peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. Designed for a 0°C to 70°C operating temperature range, this lead-free and RoHS compliant component is ideal for embedded applications.

Frequency20MHz

PackageQFP

Quick Jump:

Technical Specifications

Microchip PIC16C67-20/PQ technical specifications.

General

Access Time	20us
Package/Case	QFP
Core Architecture	PIC
Data Bus Width	8b
Frequency	20MHz
Interface	I2C, SPI, USART, UART
Lead Free	Lead Free
Max Frequency	20MHz
Max Operating Temperature	70°C
Max Power Dissipation	1W
Max Supply Voltage	6V
Memory Size	14KB
Memory Type	OTP
Min Operating Temperature	0°C
Min Supply Voltage	4V
Number of I/Os	33
Number of Programmable I/O	33
Number of Timers/Counters	3
Operating Supply Voltage	5V
Oscillator Type	External
Package Quantity	96
Packaging	Tray
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening	No
RAM Size	368B
RoHS Compliant	Yes
Series	PIC® 16C
Watchdog Timer	Yes
