8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of One-Time Programmable (OTP) memory. This integrated circuit offers 13 programmable I/O pins, 4 analog-to-digital converter channels, and a single timer/counter. Operating within a 4V to 6V supply voltage range, it supports an external oscillator and includes Power-On Reset (POR) and Watchdog Timer (WDT) peripherals. Packaged in an 18-pin SOIC (0.300 inch) with lead-free and RoHS compliance.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C71-20/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.342mm
Lead Free
Lead Free
Length
11.74mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Max Power Dissipation
800mW
Max Supply Voltage
6V
Memory Size
1.75KB
Memory Type
OTP
Min Operating Temperature
0°C
Min Supply Voltage
4V
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
36B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
7.595mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C71-20/SO Datasheet
Download the complete datasheet for Microchip PIC16C71-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

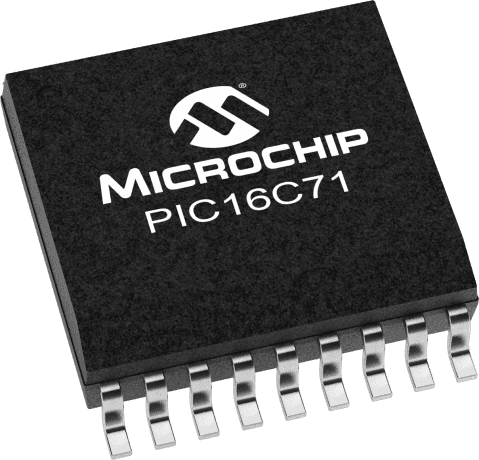

Product Images
