8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of OTP memory. This PIC architecture MCU offers 13 programmable I/O pins, one timer/counter, and integrated POR and WDT peripherals. Operating from a 4V to 6V supply, it boasts an 800mW max power dissipation and operates across a -40°C to 85°C temperature range. Packaged in a 0.300-inch, 18-lead SOIC, this lead-free and RoHS compliant component is ideal for embedded applications.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C71-20I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
6V
Memory Size
1.75KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
36B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C71-20I/SO Datasheet
Download the complete datasheet for Microchip PIC16C71-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

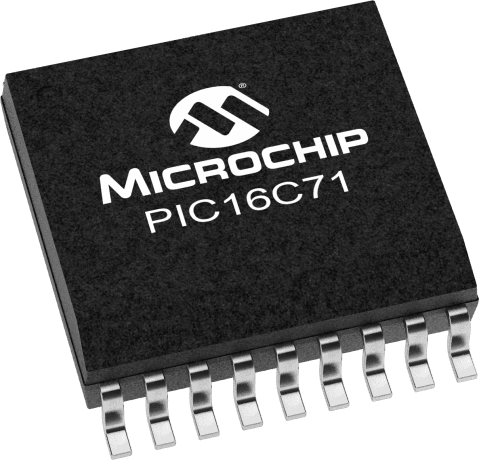

Product Images
