8-bit RISC microcontroller operating at 20MHz, featuring 1.75KB OTP memory and 68B RAM. This integrated circuit offers 4 analog-to-digital converter channels and 13 programmable I/O pins. It includes a watchdog timer and brown-out/power-on reset peripherals. Packaged in a lead-free SOIC with a 20µs access time, it operates from 4V to 6V supply voltage and a temperature range of 0°C to 70°C.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C711-20/SO technical specifications.
General
| Access Time | 20us |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 2.342mm |
| Lead Free | Lead Free |
| Length | 11.74mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 1.75KB |
| Memory Type | OTP |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4V |
| Number of ADC Channels | 4 |
| Number of I/Os | 13 |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 1 |
| Oscillator Type | External |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Radiation Hardening | No |
| RAM Size | 68B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 7.595mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C711-20/SO Datasheet
Download the complete datasheet for Microchip PIC16C711-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

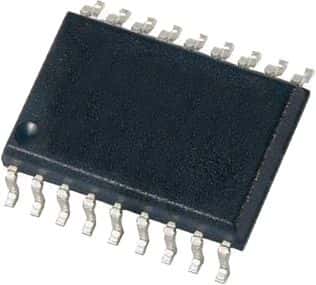

Product Images
