8-bit RISC microcontroller featuring 3.5KB OTP memory and 128B RAM. Operates at up to 4MHz with an 8-bit data bus and 13 programmable I/Os. Includes one timer/counter, Brown-out Detect/Reset, POR, and WDT. Packaged in an 18-pin SOIC (PDSO18) for surface-mount applications, with an operating voltage range of 4V to 6V.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C715-04/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Min Supply Voltage
4V
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Termination
SMD/SMT
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C715-04/SO Datasheet
Download the complete datasheet for Microchip PIC16C715-04/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

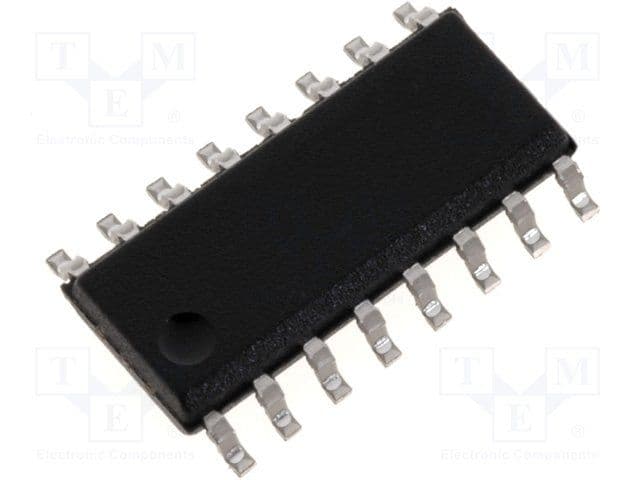

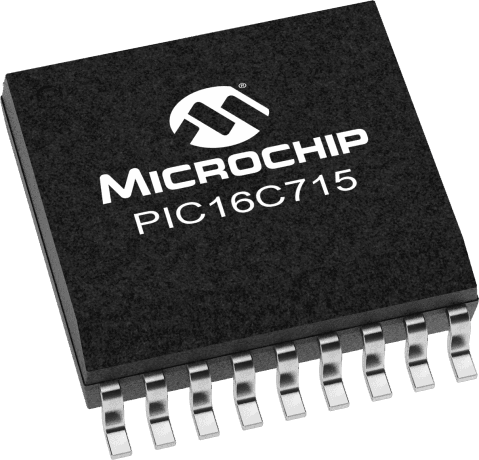

Product Images
