8-bit RISC microcontroller featuring 3.5KB OTP memory and 128B RAM. Operates at up to 4MHz with an 8-bit data bus. Offers 13 programmable I/O pins, one timer/counter, and a watchdog timer. Packaged in a 0.300-inch wide PDSO18 (SOP-18) package, this lead-free and RoHS-compliant component functions within a 4V to 6V supply voltage range and operates from -40°C to 85°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C715-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Package Quantity
42
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C715-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16C715-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

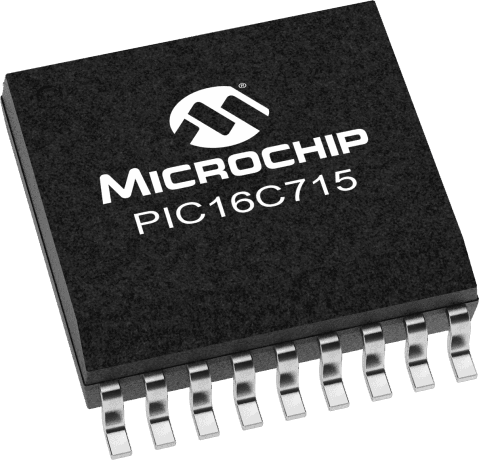

Product Images
