8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB of One-Time Programmable (OTP) memory. This integrated circuit offers 128 bytes of RAM, 13 programmable I/O pins, and a single timer/counter. Operating from a 4V to 6V supply range, it boasts a maximum power dissipation of 1W and an operating temperature range of -40°C to 85°C. The device is housed in a 0.300-inch wide SOIC package and includes a watchdog timer.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C715-20I/SO technical specifications.
General
| Access Time | 20us |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 3.5KB |
| Memory Type | OTP |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4V |
| Number of I/Os | 13 |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C715-20I/SO Datasheet
Download the complete datasheet for Microchip PIC16C715-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

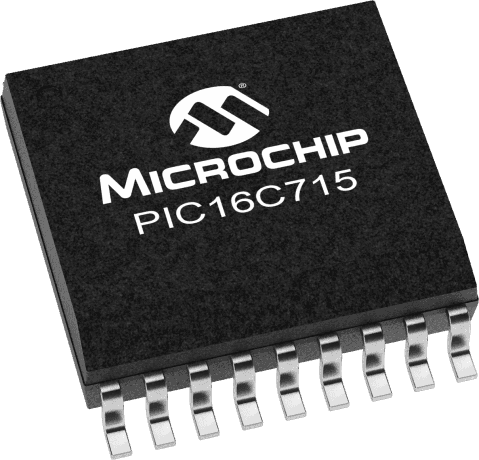

Product Images
