8-bit RISC microcontroller featuring a 20MHz core frequency and 3.5KB of EPROM/OTP memory. This surface mount device offers 15 I/O pins, 16 programmable I/O, and supports I2C, SPI, and SSP interfaces. Integrated peripherals include a watchdog timer, PWM, brown-out detect, and POR. Operating voltage ranges from 4V to 5.5V, with a maximum operating temperature of 85°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C717-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM, , OTP, RAM
Min Supply Voltage
4V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
15
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C717-I/SO Datasheet
Download the complete datasheet for Microchip PIC16C717-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

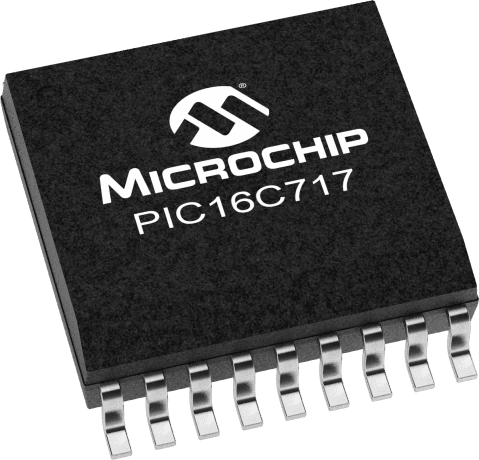

Product Images
