8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB OTP memory. This SOIC-packaged device offers 22 programmable I/O pins, 128 bytes of RAM, and supports I2C and SPI interfaces. Integrated peripherals include a watchdog timer, Brown-out Detect/Reset, POR, and PWM. Operating within a 4V to 5.5V supply range, it functions from 0°C to 70°C.
Frequency20MHz
PackageSOIC
Current2mA
Quick Jump:
Technical Specifications
Microchip PIC16C72A-20/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.39mm
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Length
18.08mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
OTP
Min Supply Voltage
4V
Number of ADC Channels
5
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Supply Current
2mA
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C72A-20/SO Datasheet
Download the complete datasheet for Microchip PIC16C72A-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

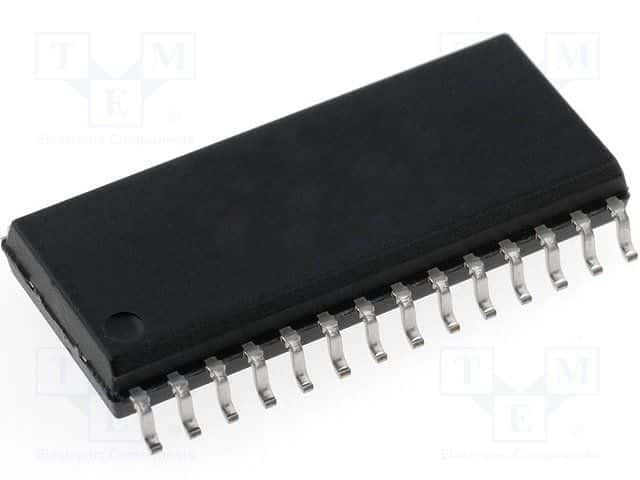

Product Images
