8-bit RISC microcontroller featuring a 4MHz clock speed and 7KB of OTP memory. This PDIP-28 packaged MCU offers 22 programmable I/O pins, supporting I2C, SPI, USART, and UART interfaces. Integrated peripherals include 2 PWM channels, 3 timers/counters, a watchdog timer, and 5 ADC channels with one 8-bit A/D converter. Operates from 4V to 6V with a maximum power dissipation of 1W and an operating temperature range of 0°C to 70°C.
Frequency4MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC16C73A-04/SP technical specifications.
General
Access Time
4us
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
3.556mm
Interface
I2C, SPI, USART, UART, SSP
Lead Free
Lead Free
Length
35.18mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
OTP
Min Supply Voltage
4V
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
7.493mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C73A-04/SP Datasheet
Download the complete datasheet for Microchip PIC16C73A-04/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

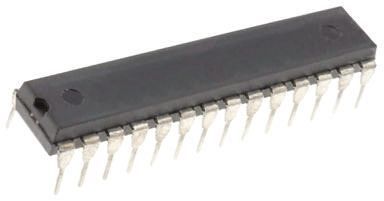

Product Images
