8-bit RISC microcontroller featuring 7KB OTP memory and 192B RAM. Operates at up to 10MHz with an 8-bit data bus. Offers 22 programmable I/O pins, 2 PWM channels, and 3 timers/counters. Supports I2C, SPI, and USART/UART interfaces. Packaged in a 28-pin DIP, this lead-free component operates from 4V to 6V with a typical 5V supply.
Frequency10MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC16C73A-10/SP technical specifications.
General
Access Time
10us
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
10MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
OTP
Min Supply Voltage
4V
Number of Bits
8
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
2
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C73A-10/SP Datasheet
Download the complete datasheet for Microchip PIC16C73A-10/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

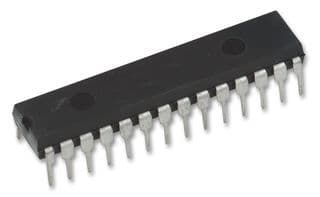

Product Images
