8-bit RISC microcontroller featuring a 4MHz clock speed and 7KB OTP memory. This integrated circuit offers 22 programmable I/O pins, supporting I2C, SPI, and UART interfaces. Includes 5 analog input channels with one A/D converter, 2 PWM channels, and 3 timers. Operates from a 4V to 5.5V supply, with a maximum power dissipation of 1W, and is housed in a 28-pin SOIC package.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C73B-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
2.39mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
18.08mm
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
OTP
Min Supply Voltage
4V
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C73B-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16C73B-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

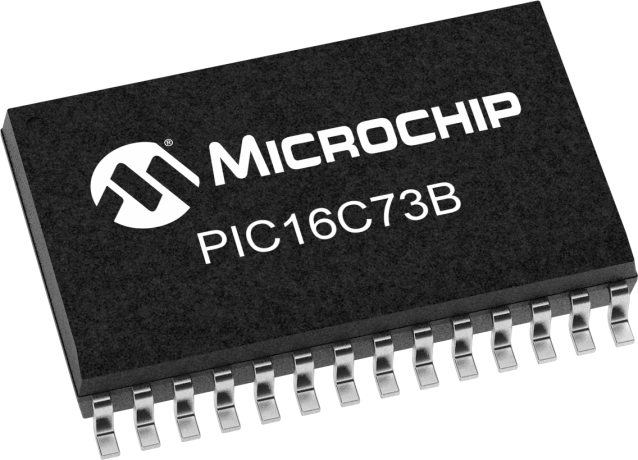

Product Images
