8-bit RISC microcontroller featuring 4MHz operation and 7KB OTP memory. This PDIP-packaged MCU offers 33 I/O pins, 8 ADC channels, and 2 PWM channels. Integrated peripherals include I2C, SPI, and UART interfaces, along with a watchdog timer. Operating voltage is 5V, with a temperature range of -40°C to 85°C.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications

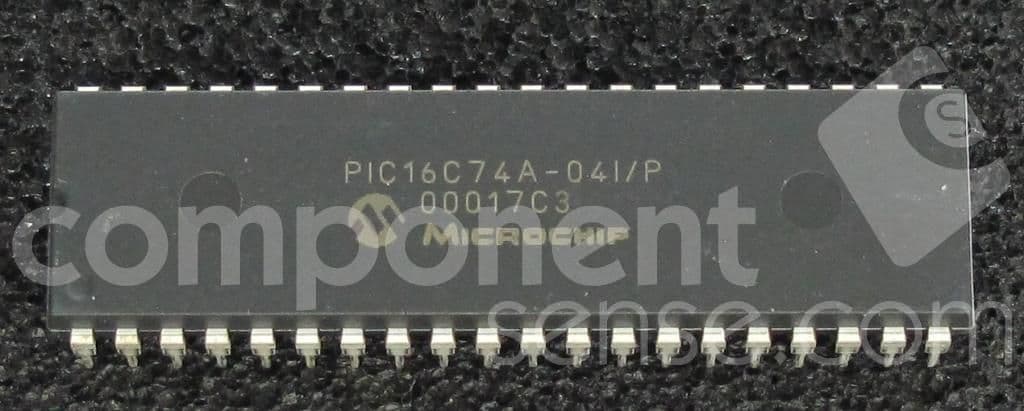

Microchip PIC16C74A-04I/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
4.06mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
52.45mm
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
OTP
Min Supply Voltage
4V
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C74A-04I/P Datasheet
Download the complete datasheet for Microchip PIC16C74A-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
