8-bit microcontroller featuring 14KB OTP memory and 368B RAM. Operates at 4MHz with an 8-bit data bus width and 33 I/O pins. Supports I2C, SPI, and USART/UART interfaces, with an external oscillator. Includes 3 timers/counters, Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in TQFP, this lead-free component operates from 4V to 6V with a maximum operating temperature of 70°C.
Frequency4MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC16C77-04/PT technical specifications.
General
Access Time
4us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
14KB
Memory Type
OTP
Min Supply Voltage
4V
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C77-04/PT Datasheet
Download the complete datasheet for Microchip PIC16C77-04/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

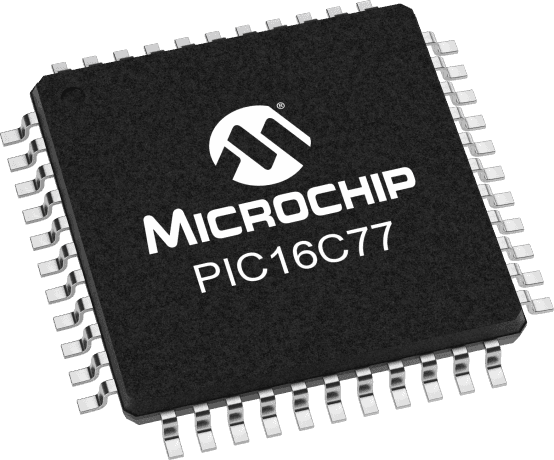

Product Images
