8-bit OTP microcontroller featuring a PIC core architecture, operating at up to 20MHz. This integrated circuit offers 14KB of OTP memory, 368B of RAM, and 33 programmable I/O pins. It supports I2C, SPI, and USART/UART interfaces, along with peripherals including Brown-out Detect/Reset, POR, PWM, and WDT. Designed for a 4V to 6V operating supply voltage, it functions within a -40°C to 85°C temperature range and is housed in a TQFP package.
Frequency20MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC16C77-20I/PT technical specifications.
General
Access Time
20us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
14KB
Memory Type
OTP
Min Supply Voltage
4V
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C77-20I/PT Datasheet
Download the complete datasheet for Microchip PIC16C77-20I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

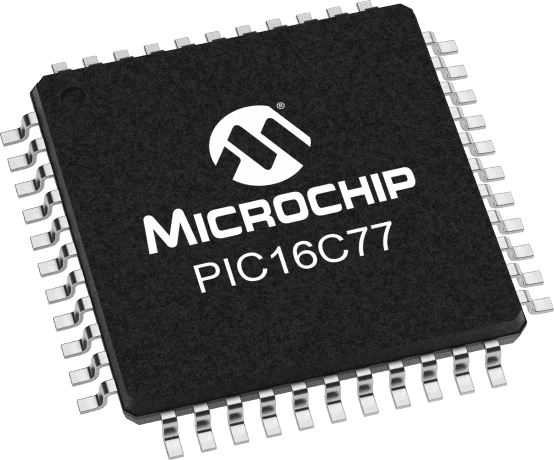

Product Images
