8-bit RISC microcontroller featuring a 20MHz core frequency and 7KB EPROM memory. This surface mount device offers 16 programmable I/O pins, 256 bytes of RAM, and 3 timers/counters. Supports I2C, SPI, and SSP interfaces with an operating supply voltage of 5V, ranging from 4V to 5.5V. Packaged in a 0.300 inch SOIC (SO-18) for tape and reel distribution, it operates from -40°C to 85°C and includes a watchdog timer.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C771T-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
1600
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C771T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16C771T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

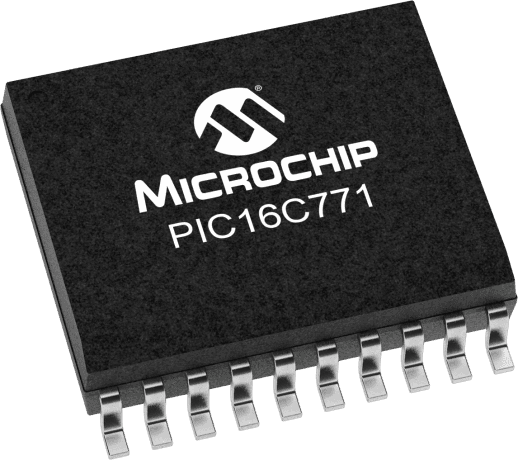

Product Images
