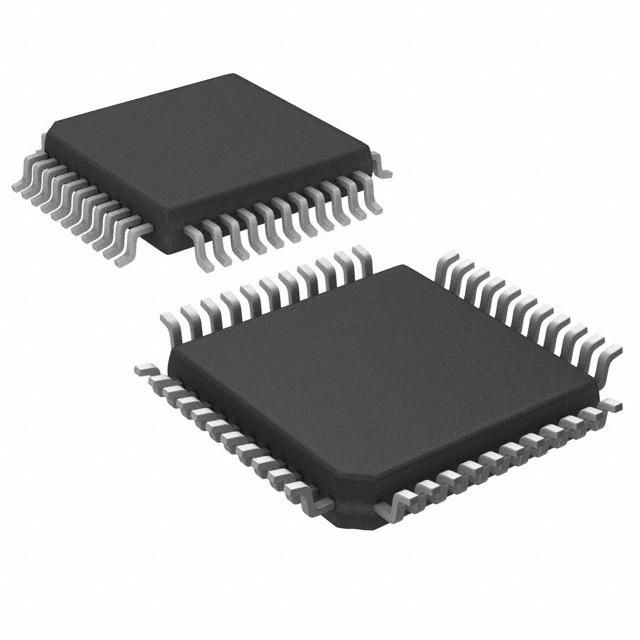

PIC16C774/PQ

8-Bit RISC MCU, 20MHz, 7KB EPROM, QFP, I2C, SPI, UART

8-bit RISC microcontroller featuring an OTP EPROM memory type with 7KB capacity and 256 bytes of RAM. Operates at a maximum frequency of 20MHz with an access time of 20µs. Supports I2C, SPI, SSP, UART, and USART interfaces. Includes 33 programmable I/O pins, 3 timers/counters, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 44-pin PQFP (MQFP-44) for surface mounting, with an operating voltage range of 4V to 5.5V.

Frequency20MHz

PackageQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip PIC16C774/PQ technical specifications.

General

Access Time	20us
Package/Case	QFP
Core Architecture	PIC
Data Bus Width	8b
Frequency	20MHz
Interface	I2C, SPI, SSP, UART, USART
Lead Free	Lead Free
Max Frequency	20MHz
Max Operating Temperature	70°C
Min Operating Temperature	0°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	7KB
Memory Type	EPROM, , OTP
Min Supply Voltage	4V
Mount	Surface Mount
Number of Programmable I/O	33
Number of Timers/Counters	3
Operating Supply Voltage	5V
Oscillator Type	External
Package Quantity	96
Packaging	Tray
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening	No
RAM Size	256B
RoHS Compliant	Yes
Series	PIC® 16C
Watchdog Timer	Yes
