The PIC16F1454 is an 8-bit microcontroller with a core architecture of PIC, operating at a maximum frequency of 48MHz and a maximum power dissipation of 800mW. It features 14KB of FLASH memory and 1024B of RAM. The device is RoHS compliant and available in a surface mount UQFN-16 package. It operates over a temperature range of -40°C to 125°C and includes peripherals such as a brown-out detect/reset, power-on reset, pulse-width modulation, and a watchdog timer.
Frequency48MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1454-E/JQ technical specifications.
General
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Interface | I2C, SPI, USB, UART, USART |
| Max Frequency | 48MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Number of Programmable I/O | 11 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1024B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1454-E/JQ Datasheet
Download the complete datasheet for Microchip PIC16F1454-E/JQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

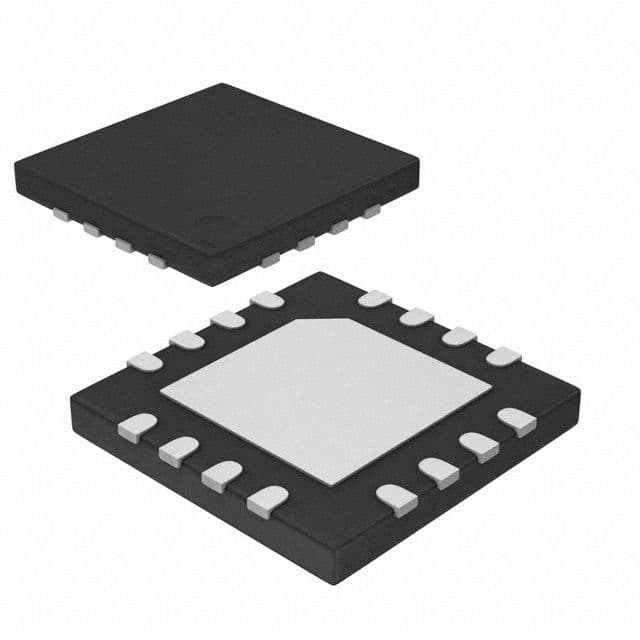

Product Images
