8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 48MHz. This surface-mount SOIC package offers 14KB of FLASH memory and 1KB of RAM, with 11 programmable I/O pins. Integrated interfaces include USB, I2C, SPI, UART, USART, and LIN, alongside peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Designed for a wide operating temperature range of -40°C to 85°C and a supply voltage of 2.5V to 5.5V.
Frequency48MHz
PackageSOIC
Current350uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1454-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.5mm
Interface
USB, I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
8.65mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
11
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
350uA
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1454-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1454-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

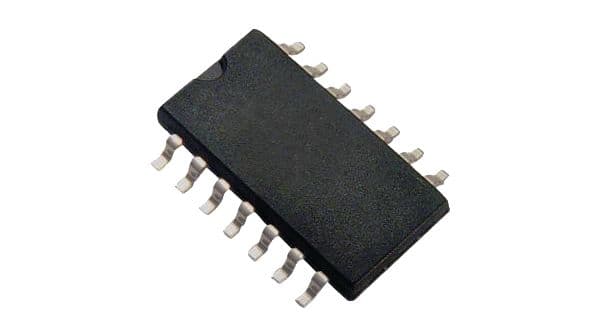

Product Images
