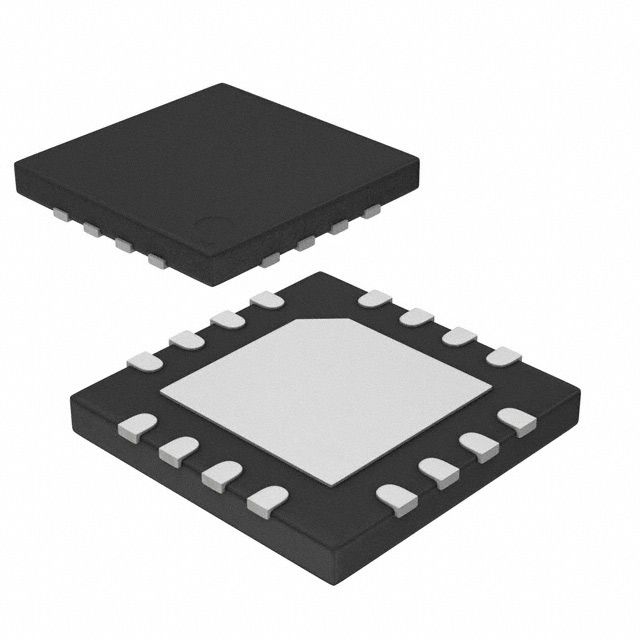

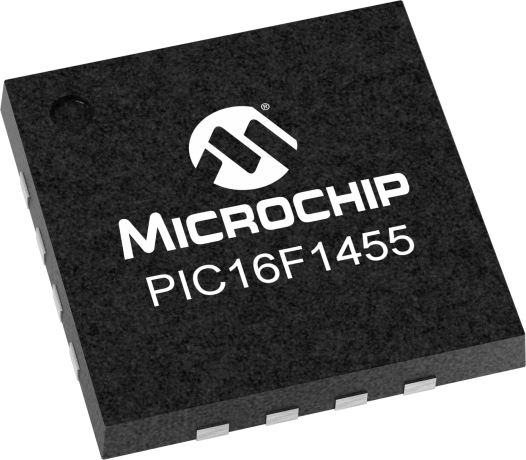

The PIC16F1455-E/JQ is an 8-bit microcontroller with a 14KB FLASH memory and a maximum operating frequency of 48MHz. It features a surface mount package and is compliant with RoHS regulations. The device operates within a temperature range of -40°C to 125°C and has a maximum power dissipation of 800mW. It includes peripherals such as a watchdog timer, brown-out detect/reset, and programmable I/Os.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC16F1455-E/JQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Interface | I2C, SPI, USB, UART, USART |
| Max Frequency | 48MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 800mW |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Number of Programmable I/O | 11 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1024B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip PIC16F1455-E/JQ to view detailed technical specifications.
