The PIC16F1455-E/P is an 8-bit microcontroller with 14KB of FLASH memory and 8 I/Os. It features a DIP-14 package and operates over a temperature range of -40°C to 125°C. The device supports various interfaces including I2C, SPI, USB, UART, and USART. It also includes peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, and a watchdog timer. The PIC16F1455-E/P is RoHS compliant and available in a rail/Tube packaging.
PackageDIP
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip PIC16F1455-E/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip PIC16F1455-E/P technical specifications.
General
| Package/Case | DIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Interface | I2C, SPI, USB, UART, USART |
| Max Operating Temperature | 125°C |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of I/Os | 8 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1455-E/P Datasheet
Download the complete datasheet for Microchip PIC16F1455-E/P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

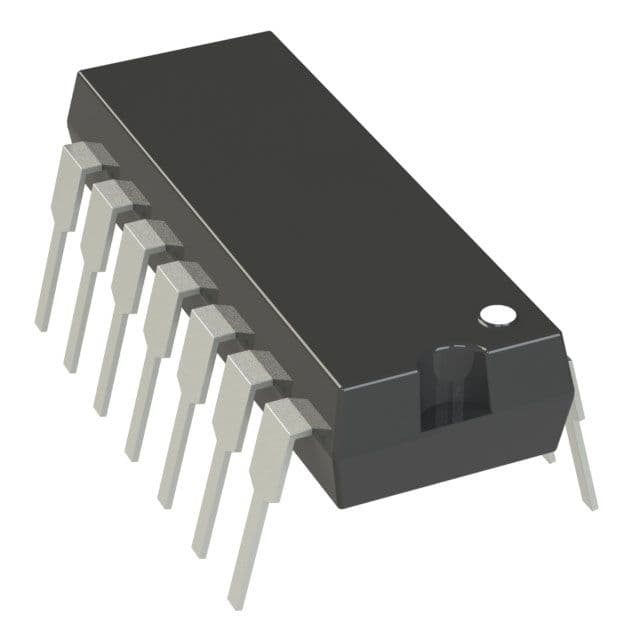

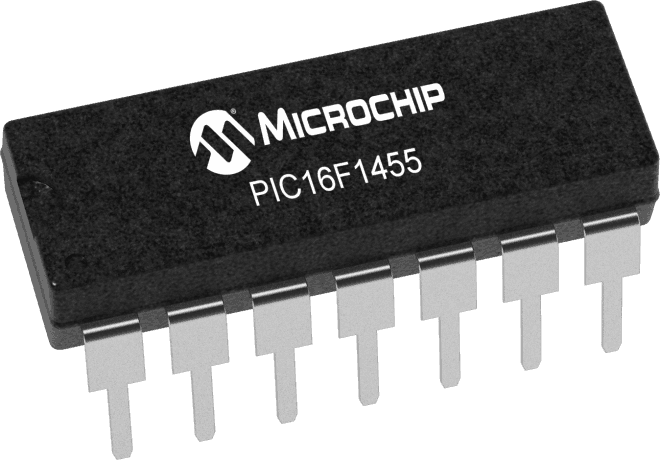

Product Images
