8-bit PIC RISC microcontroller featuring 14KB FLASH memory and 1KB RAM. Operates at up to 48MHz with integrated I2C, SPI, USB, UART, USART, and LIN interfaces. Offers 11 programmable I/Os, 5 ADC channels, and 2 PWM channels. Packaged in a 4mm x 4mm QFN with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1455-I/ML technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, USB, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.5V |
| Number of ADC Channels | 5 |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 11 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1455-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1455-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

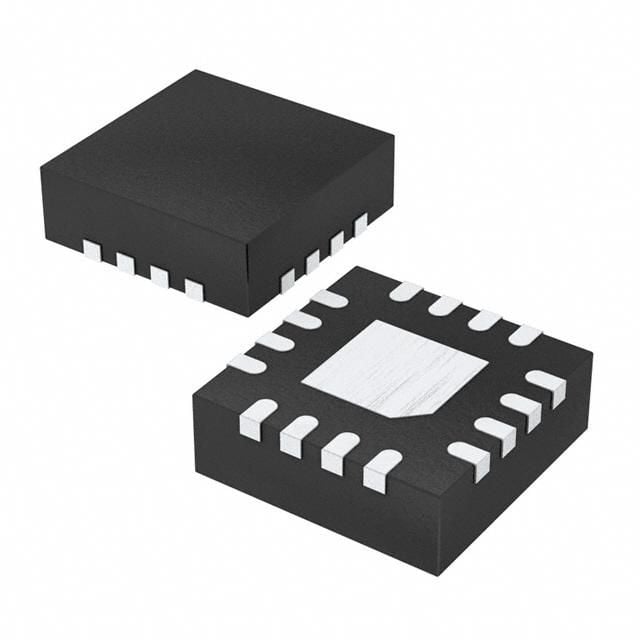

Product Images
