8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Offers 11 general-purpose I/O pins, 8 ADC channels, and 3 timers/counters. Supports I2C and SPI interfaces, with an internal oscillator up to 16MHz. Operates from 2.3V to 5.5V, with a temperature range of -40°C to 85°C. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Surface mountable in Tape and Reel packaging.
Frequency16MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1503T-I/MV technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Weight
0.000353oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1503T-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1503T-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

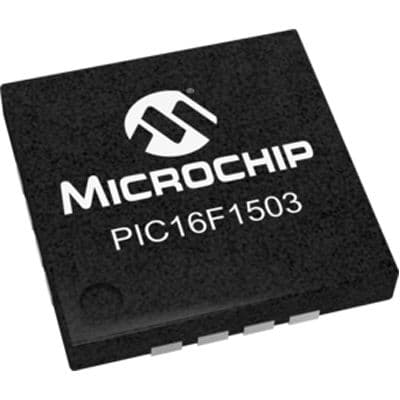

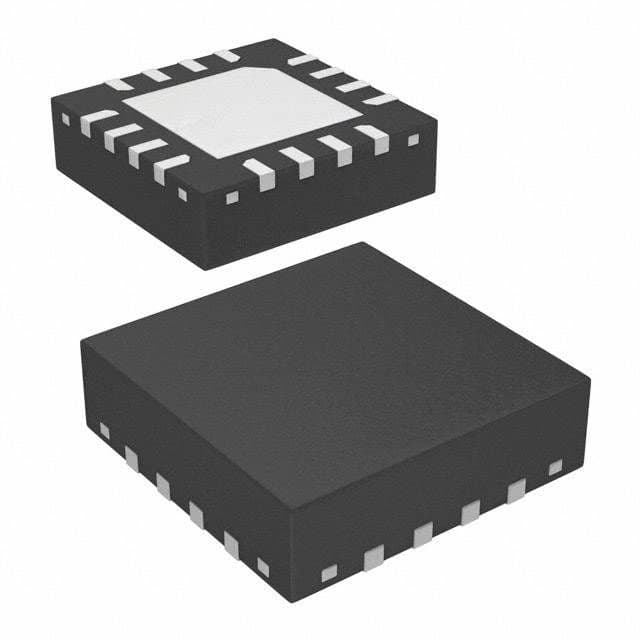

Product Images
