8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 17 programmable I/Os, 12 ADC channels, and 4 PWM channels. Supports I2C, SPI, UART, USART, and LIN interfaces. Packaged in a 20-pin QFN with dimensions of 4x4x0.95mm, operating from 2.3V to 5.5V.
Frequency20MHz
PackageQFN
Current850uA
Quick Jump:
Technical Specifications
Microchip PIC16F1508-E/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of ADC Channels
12
Number of I/Os
17
Number of I2C Channels
1
Number of Programmable I/O
17
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
850uA
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1508-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F1508-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

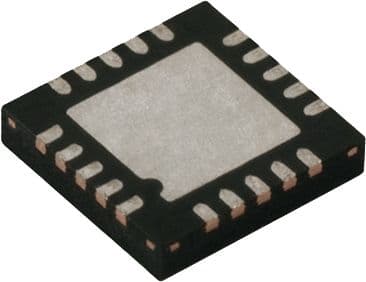

Product Images
