Microchip
PIC16F1509T-I/SO
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO20, 7.50 MM, LEAD FREE, PLASTIC, SOIC-20
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F1509T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART, LIN
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
3
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1509T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1509T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

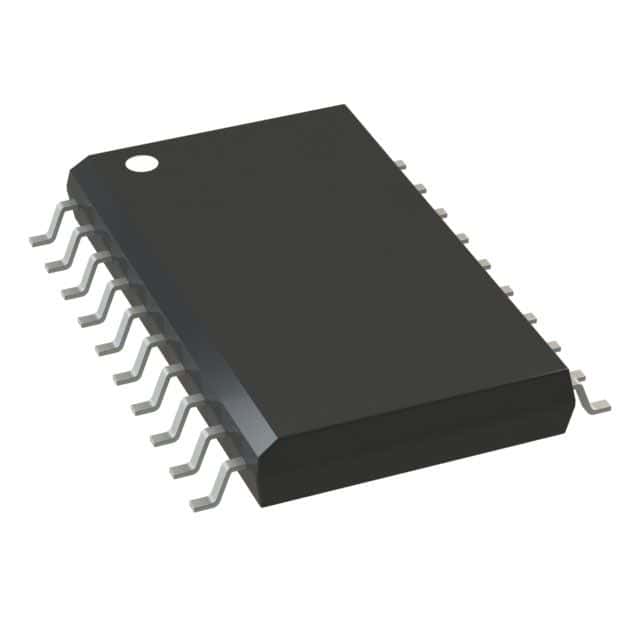

Product Images
