8-bit RISC microcontroller featuring a PIC core architecture and 20MHz maximum operating frequency. This FLASH memory microcontroller offers 3.5KB of program memory and 128B of RAM, with 24 I/O pins. Integrated peripherals include I2C, SPI, and UART interfaces, along with 17 ADC channels and 2 PWM channels. Operates from 2.3V to 5.5V supply voltage and is RoHS compliant.
Frequency20MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC16F1512-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
3.5KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1512-E/SP Datasheet
Download the complete datasheet for Microchip PIC16F1512-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

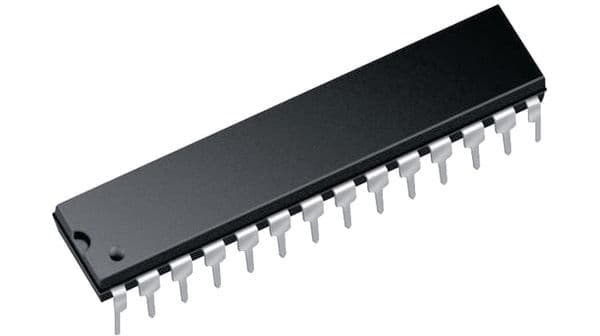

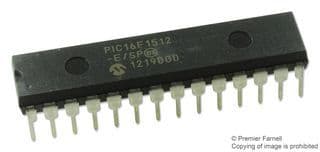

Product Images
